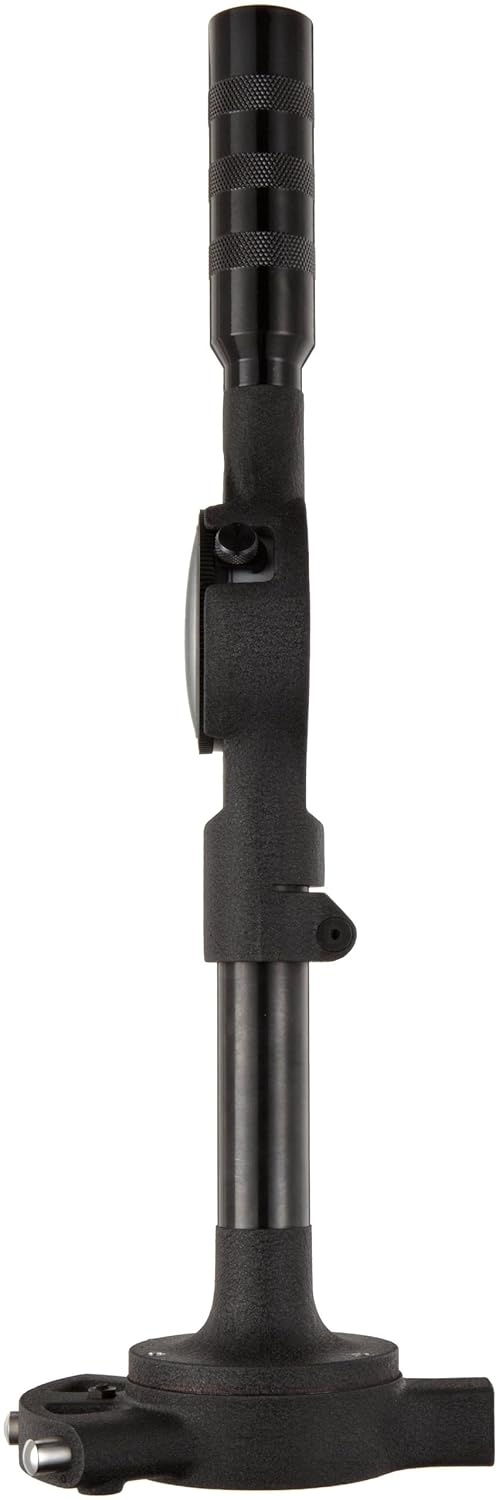

Starrett 84Z-134-7J Dial Bore Gauge, 8-12.125" Range, 0.0005" Graduation
Product details
| Management number | 210923212 | Release Date | 2026/04/04 | List Price | $549.20 | Model Number | 210923212 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Starrett 84Z-134-7J Dial Bore Gauge has a measurement range of 8 to 12.125" and gradient spacing of 0.0005". Two centralizing plungers provide accurate tool alignment within the bore. This direct-measuring gauge uses a two-point contact system for detection of geometry problems such as ovality and taper. Contact points are made of hardened tool steel contact points for wear resistance and are spring-loaded for sensitivity. The housing and knurled handle are made of aluminum for a lightweight feel and good balance. Dial indicators have jewel bearings for sensitivity and the gauge is furnished in a finished wood case.Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores.The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company, founded in 1880, is headquartered in Athol, MA.
- Total measurement range of 8 to 12.125"
- Gradient spacing of 0.0005"
- Two centralizing plungers provide accurate tool alignment
- Two-point contact for detection of geometry problems such as ovality and taper
- Hardened tool steel contact points for wear resistance
| Item Weight | 9.5 pounds |
|---|---|
| Manufacturer | Starrett |
| Item model number | 84Z-134-7J |
| Package Dimensions | 16.1 x 7.5 x 7.3 inches |
